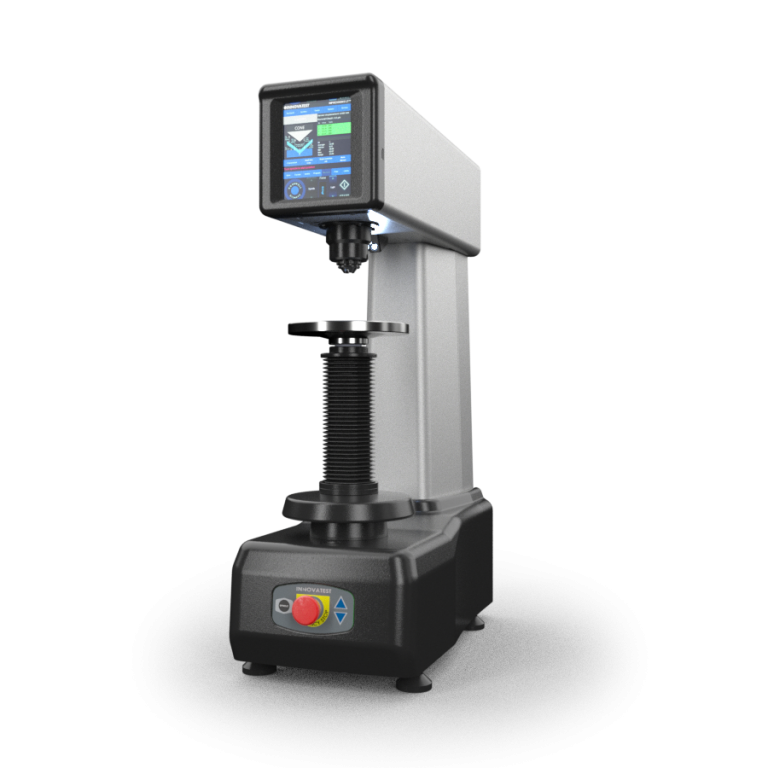

VERZUS 710RS(B)
Rockwell Hardness tester
The VERZUS 710 RS(B) is constructed around a rock solid C-frame with supreme rigidity.
The closed loop system based on a load cell and precision force actuator guarantees the best GR & R results. The test forces can range from 1kgf to 250kgf
and a full test cycle can be as little as 13 seconds (at a dwell time of 10 seconds).
Due to the depth measurement via an optical system a direct depth reading of 0.1 micron is a standard feature.
For demanding users the VERZUS can be equipped with a motorized spindle (optional) that lifts your work piece, without any effort, to the required testing position.
Scales: Rockwell, Superficial Rockwell, Brinell (RSB model), HBT & HVT, Ball indentation for plastic ISO 2039/1
Test forces: 3, 10 kgf pre-load; 15, 30, 45, 60, 100, 150kgf main load. All Brinell test forces from 1kgf – 250kgf (RSB model)
Load app. system: Fully automatic, Load cell, closed loop, force feedback
Control: Fully integrated Windows Controller, SSD hard disk, Windows 10 operated, with IMPRESSIONS LT system , includes automatic measurement, keyboard & mouse.
Display: 6.5’’ Industrial HD touch screen, embedded
Software: CSV files, single readings, reports, printer
Advanced output: No. of tests, Mean, St. Deviation, Min., Max., Range, CP, CPk, individual readings list, storage memory, Dwell time, test force setting, scale selection, calibration etc.
Illumination: Adjustable workpiece illumination
Spindle: Traditional cast iron frame with spindle and spindle bellows.
Clamp to protect indenter and fix workpiece to anvil or stage
Workpiece Acc.: 315mm (H) X 200mm (D)
Anvils: Anvils, stages, accessories as per detailed catalogue
