NEXUS 605RS(B)
Rockwell Hardheidsmeter

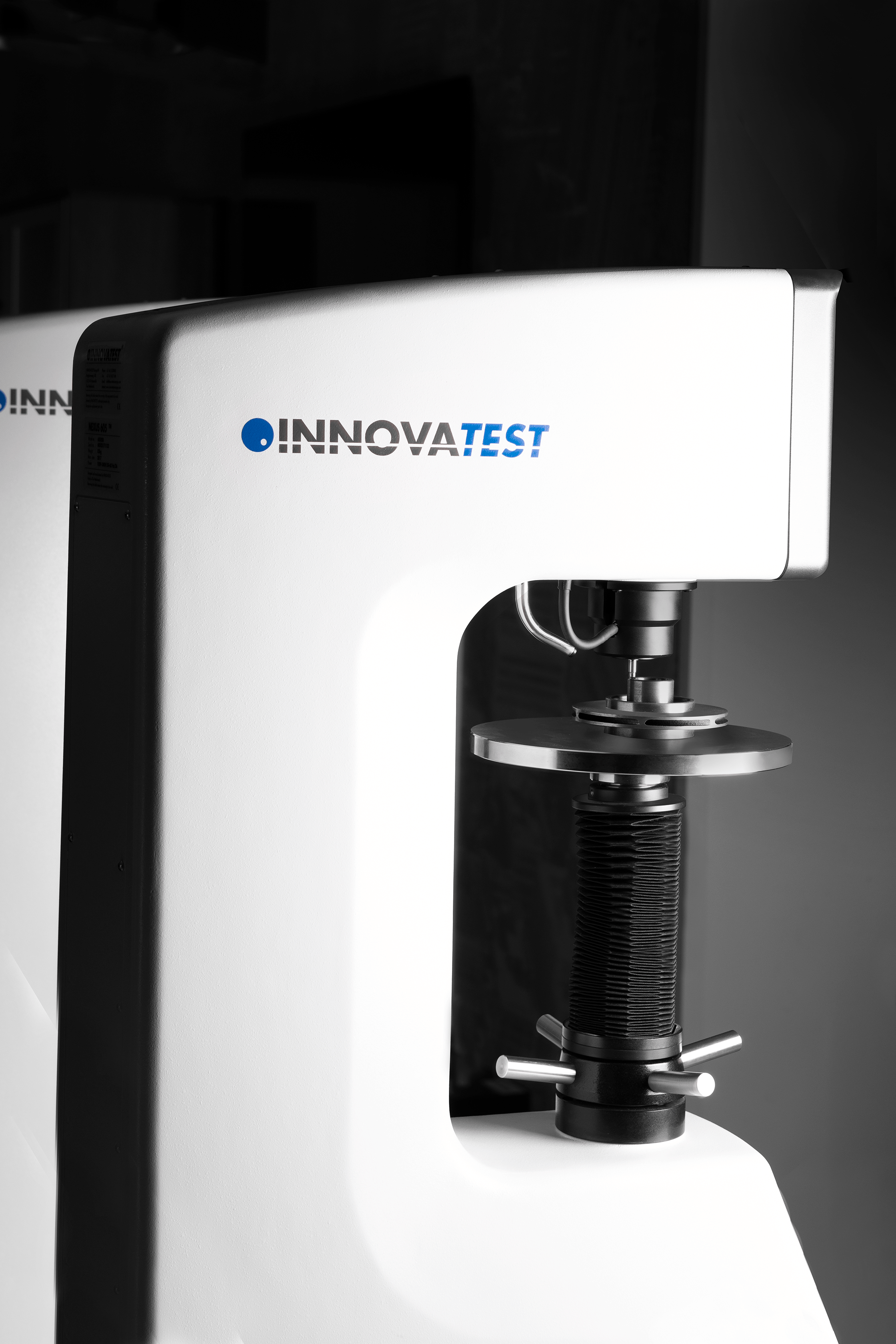

The NEXUS 605 Rockwell hardness testers offer quality and durability.
The design and performance of these models make it actually best in its class. These Twin Scale models (Rockwell & Superficial Rockwell) can accommodate a wide variety of applications. The RSB models cover Brinell hardness testing from 3kgf up to 187.5kgf, in combination with an analogue microscope. Simply key in the measured diameters of the Brinell indent and testers calculate the Brinell value including statistics and conversion to other scales.
This model been developed for use in general metal workshops, laboratories, schools, universities and for industries that use hardness testers on a regular basis during an 8 hours shift.
Scales: Rockwell & Superficial Rockwell, Brinell (RSB model)
Test Forces: 3, 10kgf pre-load, 60, 100, 150kgf main load. All Brinell test forces from 3kgf up to 187.5kgf (RSB model)
Load App. System: Fully automatic, load cell, closed loop, force feedback
Control/Display: I-TOUCH™, 6.5’’ full color touchscreen
Software: No. of tests, Mean, St. Deviation, Min., Max., Range, CP, CPk, individual readings list, storage memory, Dwell time, test force setting, scale selection, calibration etc
Memory: Large internal memory stores 99 readings
Illumination: Adjustable workpiece illumination

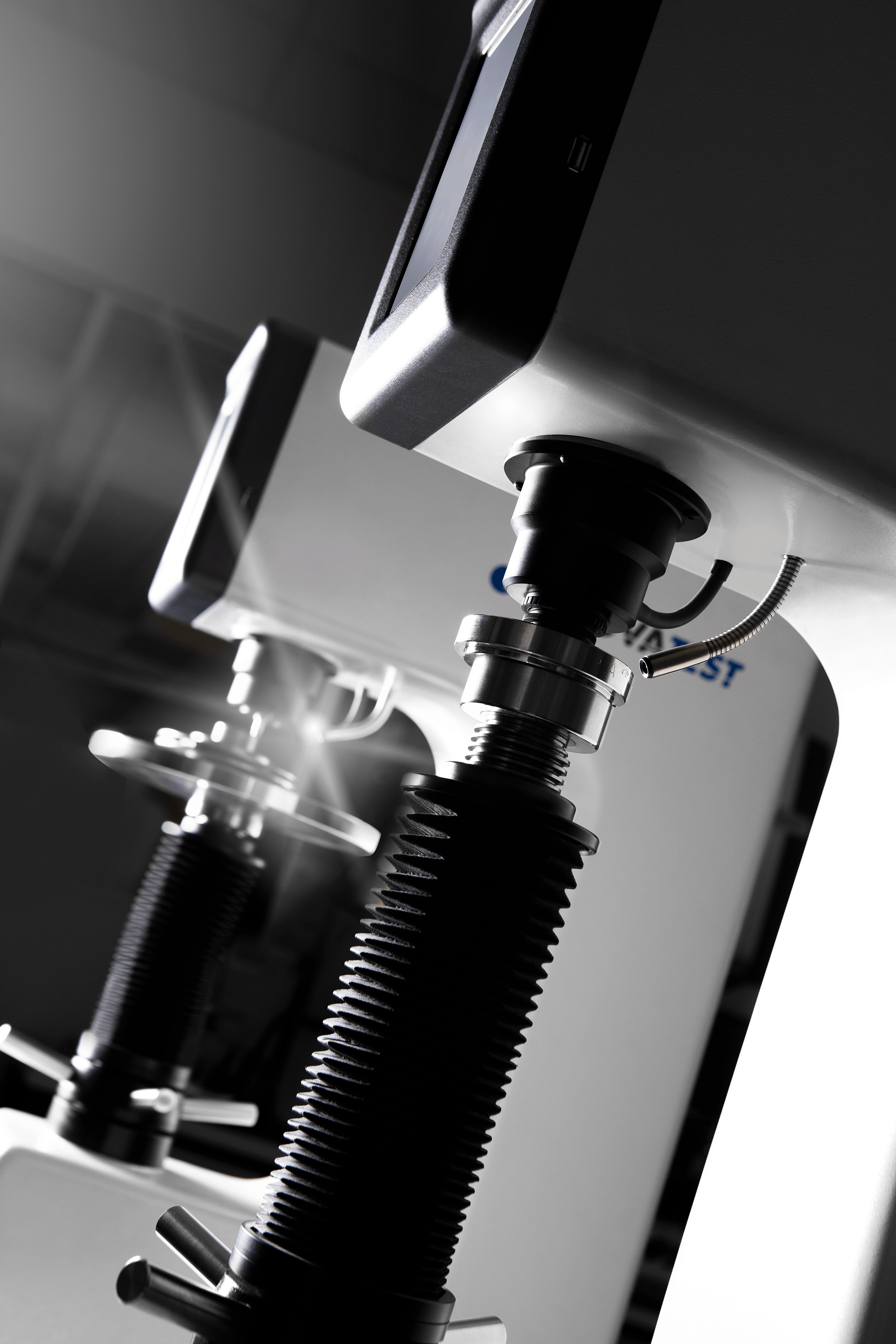

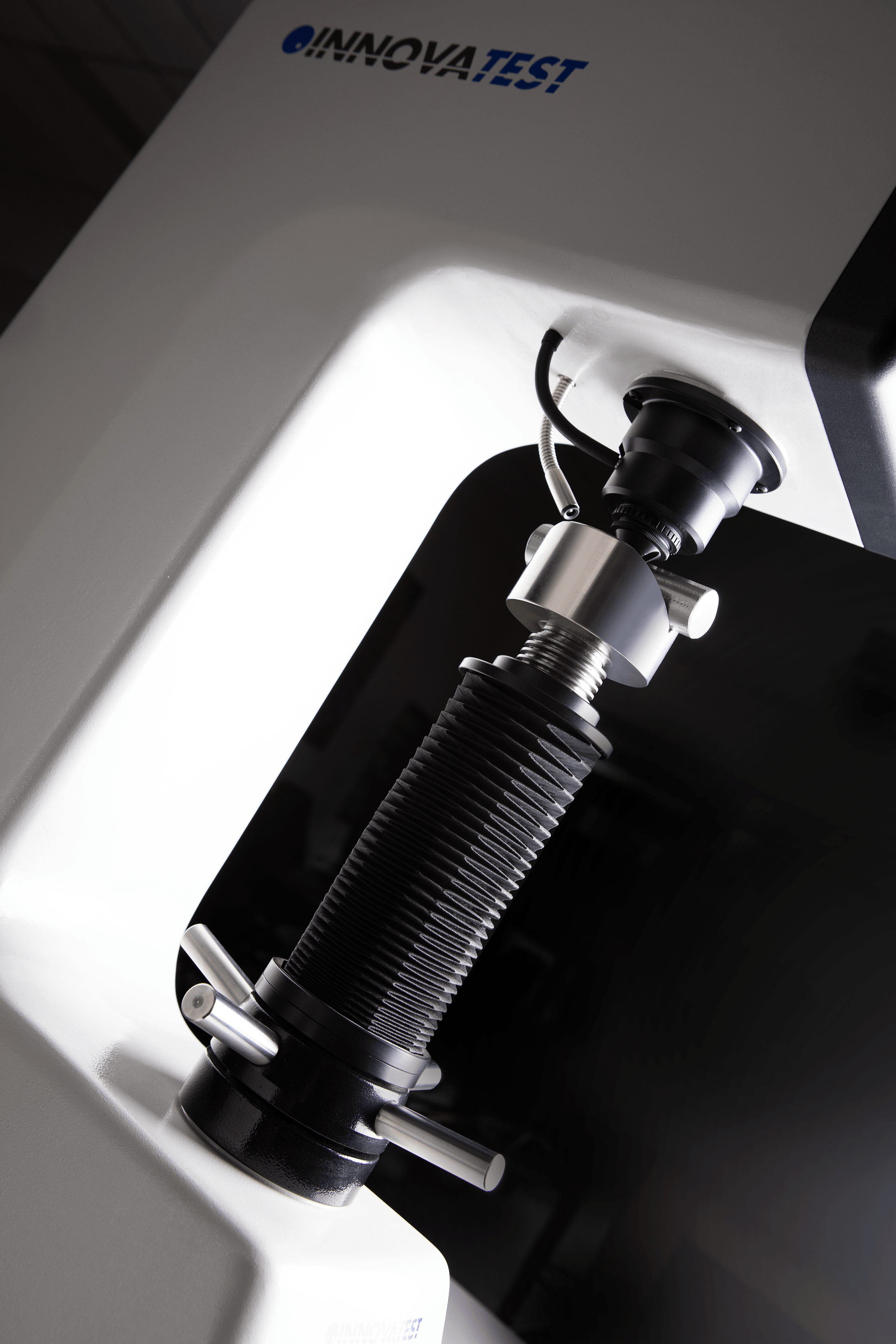

Spindle: Traditional cast iron frame with spindle and spindle bellows. Clamp to protect indenter and fix workpiece to anvil or stage
Workpiece Acc.: 260mm (H) X 165mm (D)
Output: USB
Anvils: Anvils, stages, accessories as per detailed catalogue
